Newly Designed And Manufactured Solar Light

The development of lighting drives the development of human civilization. Concepts of green, energy-saving, environmental protection, safety and health reflect the progress of the development of human civilization.

KALLL FX Series

Designed by a professional industrial design team, integrating solar panels, led sources, controller, battery, human body induction, and housing.

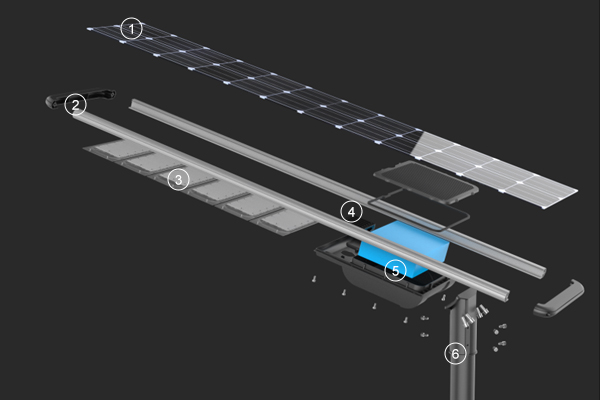

Exploded View

Solar panel

Lamp shell

LED light board + optical lens

Controller

Battery pack and battery box

Adjustable angle bracket

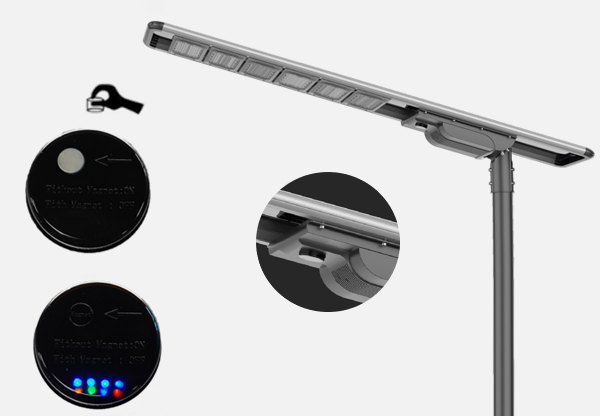

Controller

The Controller of FX series adopts extremely simplified design, integrated controller, microwave induction, and magnetic switch in one, which makes the operation simple, the maintenance simple, and the stability is higher.

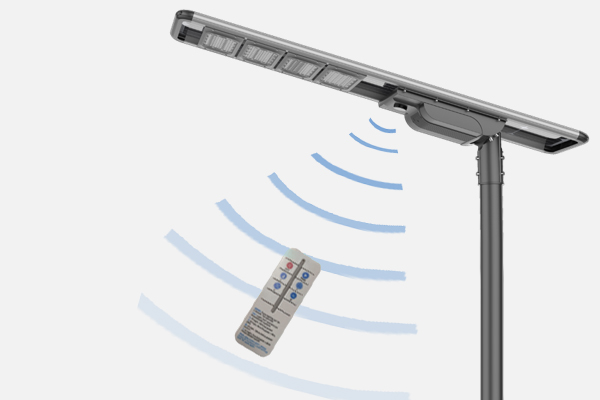

Remote Control

Equipped with a 433 remote control, which uses a drone remote control solution. The remote control distance can reach 30 meters, which can directly penetrate obstacles. At the same time, it can control multiple lamps.

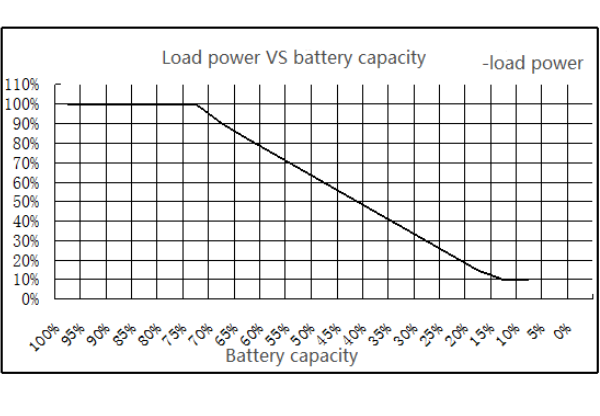

Intelligent management of power saving.

When "Yes" is selected, the controller will enter the power-saving intelligent management mode, and the LED load power will enter the intelligent management mode of automatic power reduction according to battery capacity at the (power-saving voltage) point. The system can prolong the lighting time on cloudy and rainy days.

R&D by ourselves, patent design controller+power swtich+ microwave motion sensor all in one box.

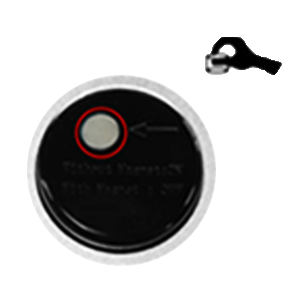

1. With Magnet Switch

Before mounted on the pole, take away the magnet iron sheet.

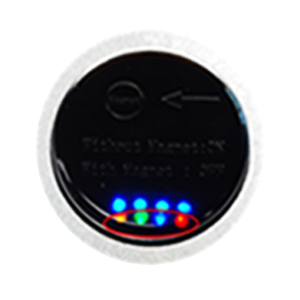

2. With Battery Power Indicator 4Thore

1. There are four blue ledspower indicators, each blue light represents 25% of the power
2. Four blue leds light on means 75%-100% power, three bule leds light on means 50%-75% power, two leds light on means 25%-50% power, one leds light on means 25% power.

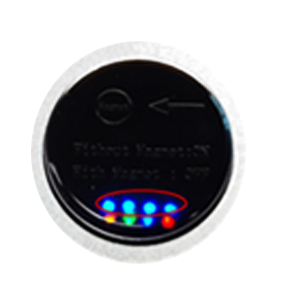

3. With Status Indicator LED

Solar Light Controller Status Indicator
Indicator Light	Status	Indicator Light Description
① Yellow (Motion sensor)	On	Movement Detected
① Yellow (Motion sensor)	Off	Without Movement Detected
② Green (LED)	On	LED with output: Light on
	Off	LED without output: Light off
	Flicker	LED Short circuit
③ Blue (Battery)	On	Battery power enough for work
	Off	Battery without output
	Flicker	Battery undervoltage
④ Red (Solar panel)	On	Battery charged to full power
	Off	Solar panel without output (at night)
	Flicker	Solar panel is charging the battery
⑤ Red & Green & Blue	Cycle light on in sequence	Battery cable plugged in backwards, poor battery connection contact, faulty battery, no battery connected
